  • Spring loaded side and top clamp arms provide top loading with easy access

  • Clamp arm knobs are located on the end of the holder to keep the optical area clear

  • Preload is applied to the array using 4mm OD precision ball bearings

  • Clamping force on the Array is very precise yet allows array to be moved once mounted

  • Holds fiber arrays of typical size with 1 to 16 count

  • The holder mounts directly onto the standard mounting plate of Luminos Positioners

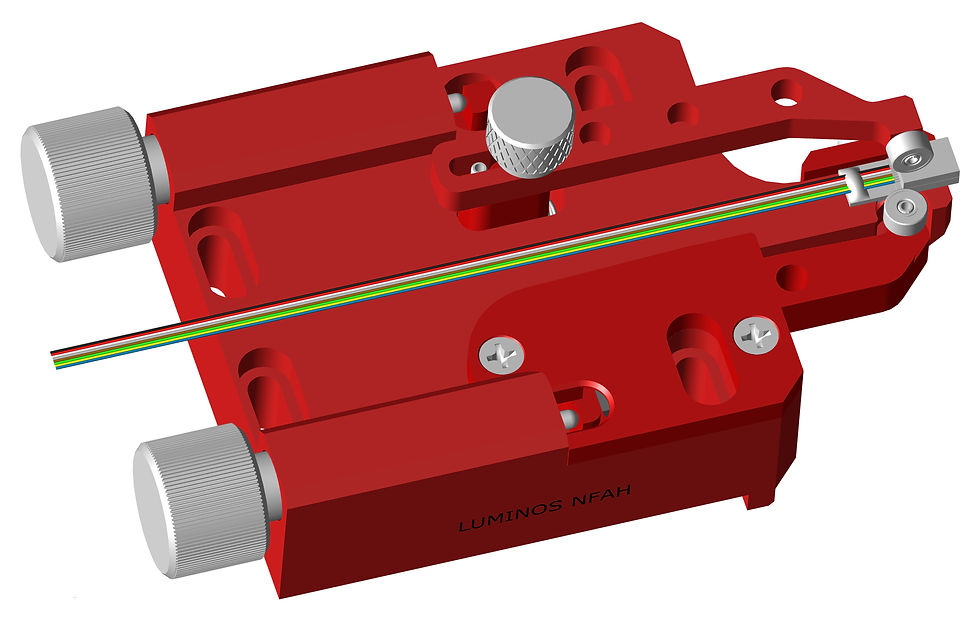

Narrow Array Holder
